Air Suspension 12 Tyre Jost Type Container Semi Trailer

Product Categories

Qingdao Genron International Trade Co., Ltd.

Contact Now

Name: Air Suspension 12 Tyre Jost Type Container Semi Trailer
Brand: Genron
Price: 5000 USD

Brand Name : Genron

Model Number : GV03001

Certification : CCC,CQC,CNAS

Place of Origin : China

MOQ : 1 UNIT

Price : USD5000-12000

Payment Terms : T/T, L/C

Delivery Time : 5-20 work days

Packaging Details : Naked Packing

Supply Ability : 80 Pieces per morth

usage : transport 40ft container

Suspension : Mechanical Suspension

Landing Gear : Standard 28Ton

Axle : 13 Ton Fuwa Brand

Tire : 12R22.5

King pin : 2"(50mm)or3.5"(90mm) JOST

Color : Customers Optional

Contact Now

Container Skeleton Semi Trailer Information:

Skeleton Semi Trailer
Main Dimensions
Shape	Optional ( One Silo with V type )
Dimension	1250024501550mm
Tare weight	About 5200-6000KGS
Chassis
Main Beams	Welding I beam Design, Q345 carbon steel ,Height: 480MM, Top Flange Plate:12mm, Bottom Flange Plate:14mm, Middle Flange Plate 6mm
Axle	3 axles, 12T or 13T, FUWA,BPW OR GV brand with three sets mechanical suspension
Landing Gear	CHINA BRAND 28T double speed
King Pin	JOST2.00 or 3.5 -inch bolt-in king pin
Leaf Spring	Six units 90(W)mm13(Thickness)mm10 Layer
Pneumatic Braking System	WABCO RE 6 relay valve;; Aluminum air brake tanker.
Brake Chamber	T30/30 air brake chamber six double chambers , china brand
Rim	9.00-22.5 STEEL China Brand
Tire	12R22.5-22.5 Triangle brand
Twist Locks	12 pcs lifting type
ABS	Optional/without
Painting	E-coating Process
Accessories	One standard tool box
Shipping Terms	By 40HQ container

Container Skeleton Semi Trailer Size:

Air Suspension 12 Tyre Jost Type Container Semi Trailer

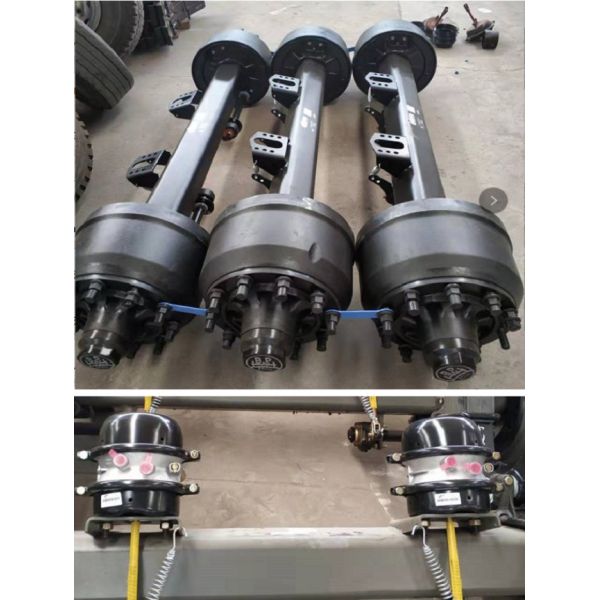

Spare parts show:

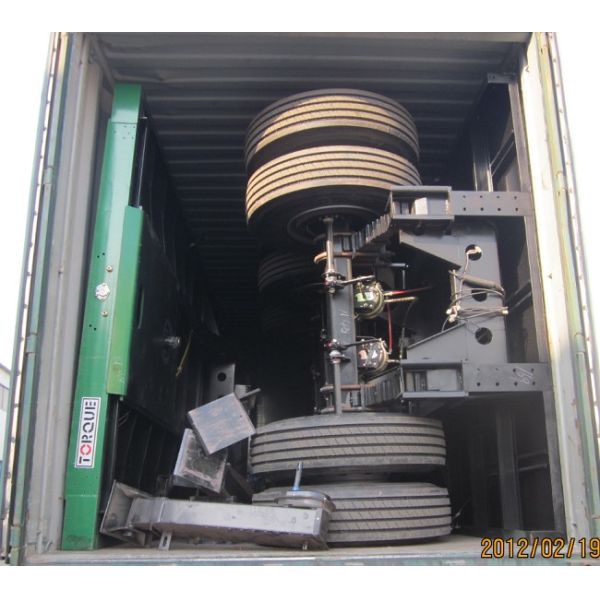

Container Skeleton Semi Trailer Shippping Item:

1.By Container:

Air Suspension 12 Tyre Jost Type Container Semi Trailer

2.By bulk cargo:

Air Suspension 12 Tyre Jost Type Container Semi Trailer
